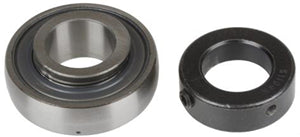

RELUBE INSERT BEARING 1-1/4" ID - NARROW INNER RING
Product Features
Ball Bearing Insert
Narrow Inner Ring - Greasable Standard Agricultural Applications
GRA-RB Series
- Narrow Inner ring type with self-locking collar
- Same as RA..RRB Series except has provision for re-lubrication
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Bearing I.D. | 1-1/4" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Greasable |
| Inner Race | Narrow |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 72mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 206 |
| Inner Ring Width | .938 Inch |
| Outer Ring Width | .709 Inch |
| Brand | Timken |
| Interchange Numbers | 387284A1, 473096R91, 473097R91, 473097R92, 590707, 7711377, 9-90284, 990284, A473097R1, B15-2104D, B152104D, GRA104NPPB, JD9416, NPS104RRC, pricefy.io, SA207-20G, SA20720G, SPA20H, TPJD9416 |
